Blind Flange Lockout BAN-F68XL

Home  Products  Blind Flange Lockout

Item No: BAN-F68XL

Unit: Piece

Material: PA66+ 33% Fiber + Steel

Weight: 880g

Color: Red

PDF File INQUIRY

Description:

Item No.	BAN-F68XL

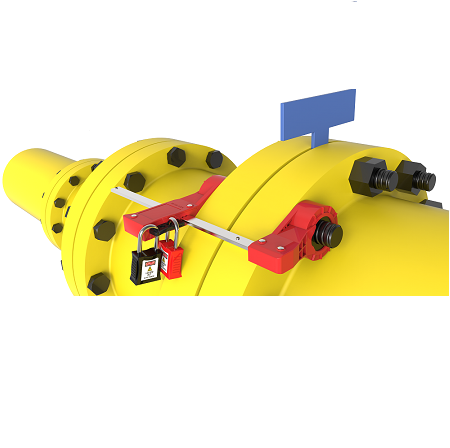

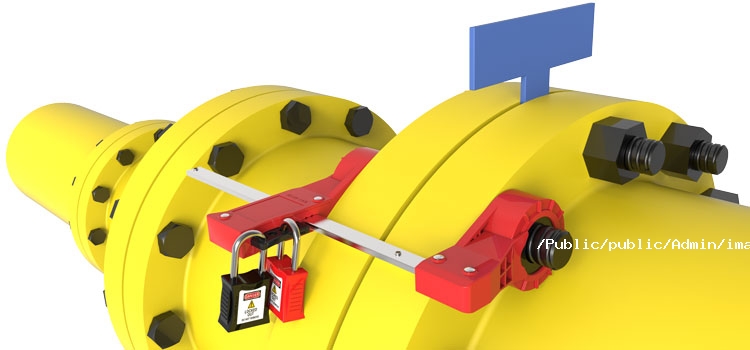

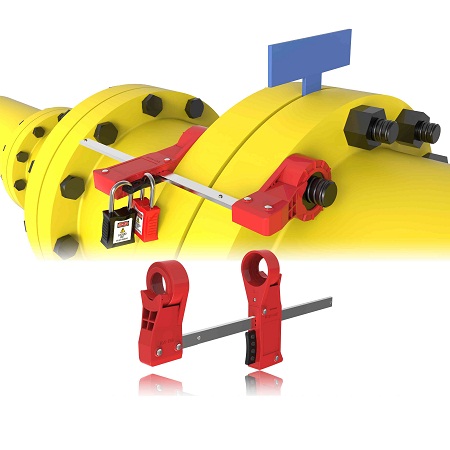

Description	Blind Flange Lockout Device - Extra Large
Recommended Nut Diameter	49mm - 81.5mm
Pipe Diameter Range	14in - 24in (355.6mm - 609.6mm)
Pipe Flange Width Range	7-3/4in - 17-7/8in (196.9mm - 447.8mm)
Max Shackle Diameter	9/32in (7mm)
Material	PA66 +33% Fiber and Q235 Carbon Steel
Operation Temperature	-40°F - 200°F
